Configuration Elements of the Pipette Module
The Pipette Module is, ultimately, just a configuration of your IndySoft client. The Export/Import utility (run by the installer) loads the following items.
Sample pipettes
PIPETTE001PIPETTE002PIPETTE003PIPETTE004
These show what your pipettes might look like once configured, and let you start exploring quickly.

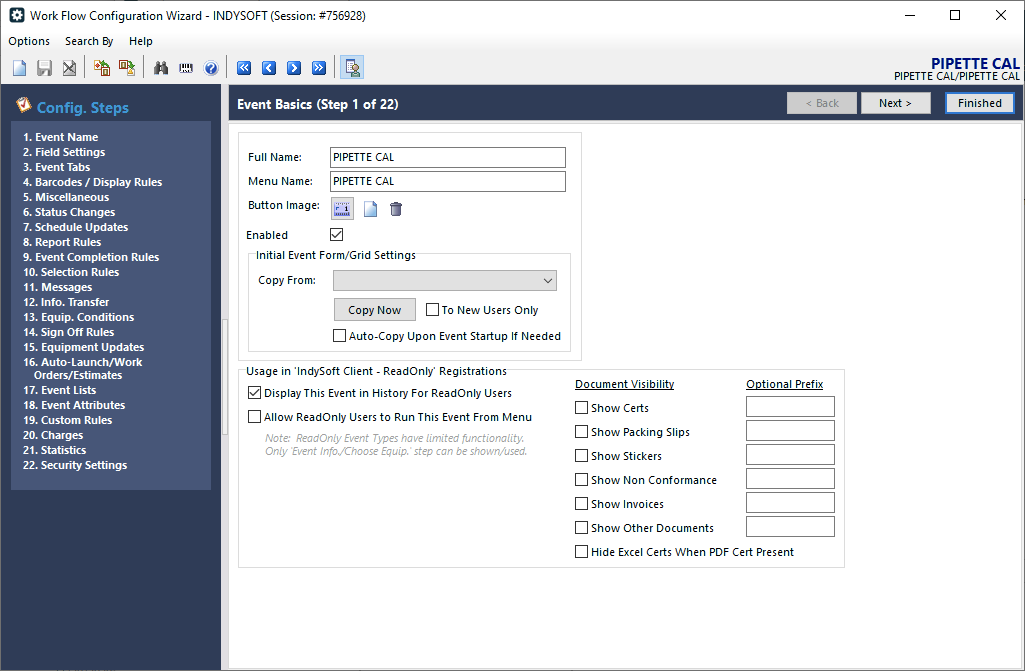

Pipette Cal event
Pipette Cal event
The Pipette Cal event is a modified version of the standard Calibration event with elements specific to pipettes — including a custom rule that launches a project script to collect pipette data.

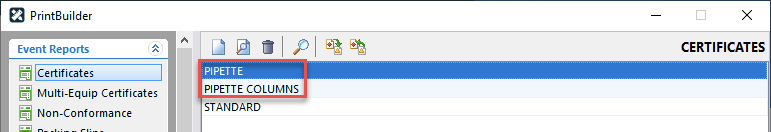

Pipette certs
Pipette certs
Because the Pipette Cal event stores test-point data in a format that isn't convenient for reporting, two specialized certs are provided as a basis for reporting Pipette Cal results.

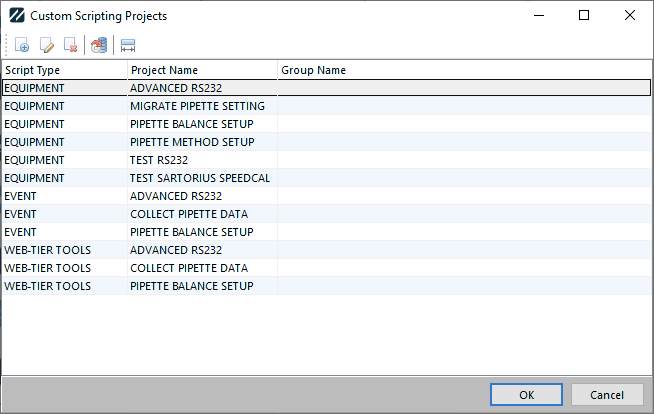

Project scripts
Project scripts
There are several equipment project scripts, three event project scripts, and three Web-Tier tools project scripts used for configuring equipment and templates, and for collecting data in the Pipette Cal event.

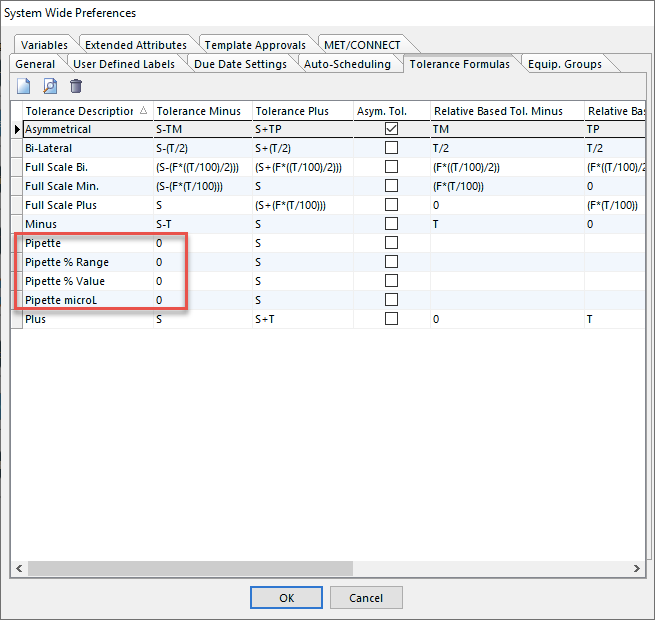

Tolerance formulas
Tolerance formulas
Four tolerance formulas are provided. They mark a gage as a pipette (on the Test Points tab) and control how tolerances are interpreted.
Pipette is present for legacy purposes and is equivalent to using Pipette % Value.

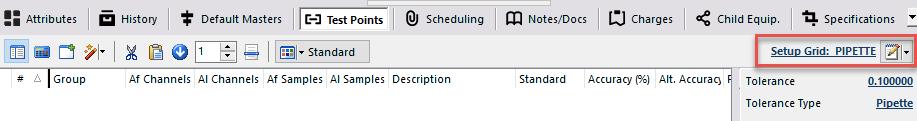

Test-point setup and result grids
Test-point setup and result grids
Because several test-point columns are used in special ways, Setup and Result grids named PIPETTE are provided.
Sample test points and specifications
The sample pipettes illustrate how test points can be set up, and what the Specifications (Uncertainty Attributes) data looks like:
Sample test points

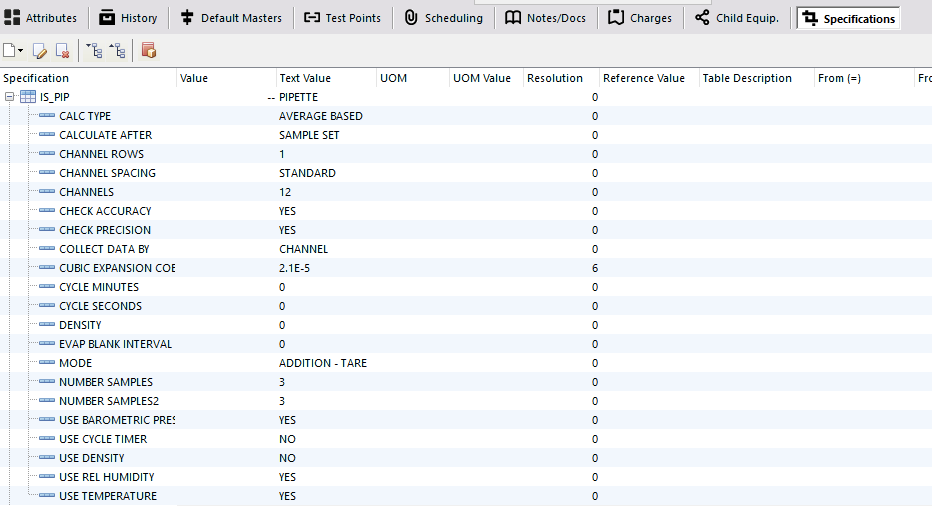

Sample specifications
The Specifications tab is also used to store configuration for balances.
