OData API with Swagger UI

What is OData

OData (Open Data Protocol) is a standardized REST protocol for building and consuming queryable APIs. Ultra API supports the following OData query features:

Feature	Description	Example
$select	Choose which fields to return	$select=COMPANY,GAGE_SN
$filter	Filter results by conditions	$filter=ISACTIVE eq '1'
$orderby	Sort results	$orderby=COMPANY asc
$top	Limit number of results	$top=10
$skip	Skip a number of results (pagination)	$skip=20
$count	Include total count of matching records	$count=true
$expand	Include related entities (navigation properties)	$expand=SCHEDGI

For the full OData specification, see the official documentation:

Swagger UI Authentication

Swagger UI is an interactive web interface where you can explore and test all OData endpoints.

Available environments:

Environment	URL
PROD	https://ultraapi.indysoft.com/swagger

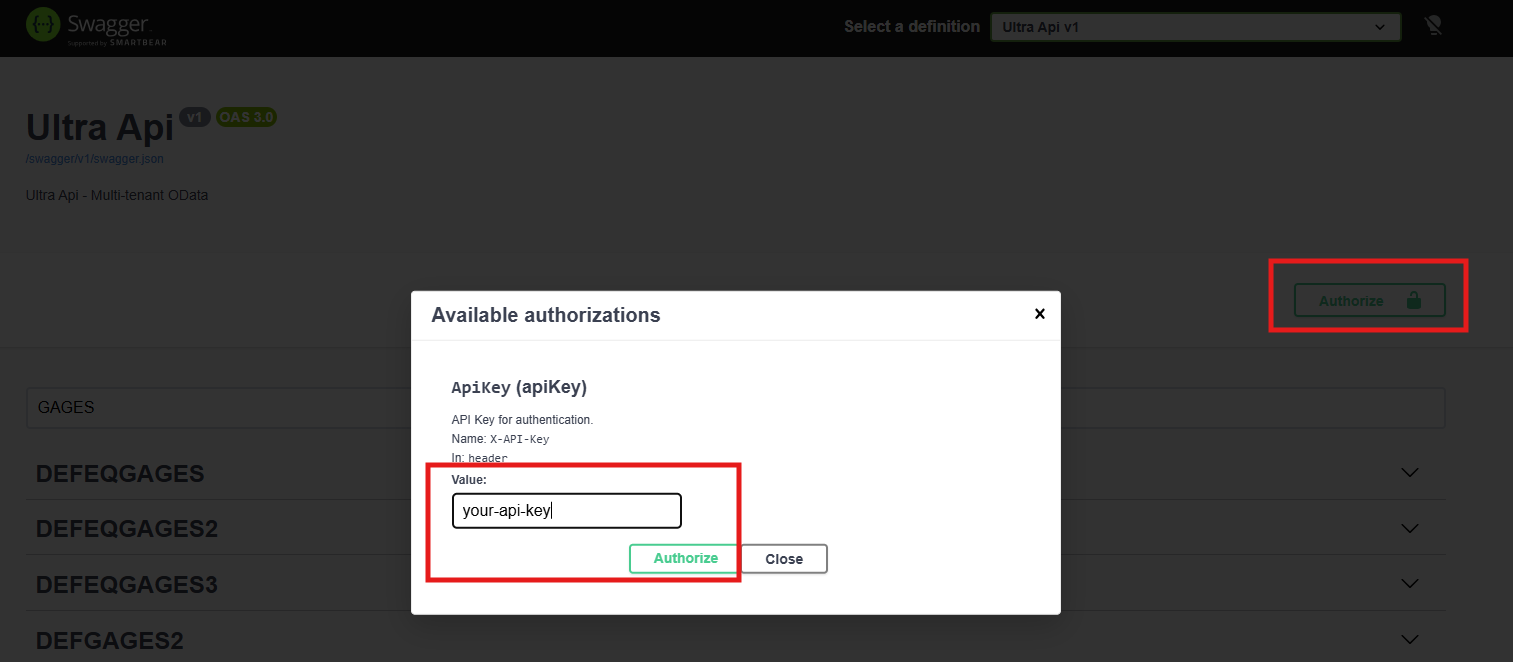

Steps to authenticate:

Open the Swagger URL for your environment in a web browser.

Click the Authorize button (lock icon at the top of the page).

In the Value field, enter your API Key.

Click Authorize, then Close.

All subsequent requests made through Swagger will include your API Key automatically.

OData API with Swagger UI screenshot 1

Swagger UI Features

When browsing entities in Swagger, the following metadata is available to help you build correct requests:

When browsing entities in Swagger, the following metadata is available to help you build correct requests

OData API with Swagger UI screenshot 3

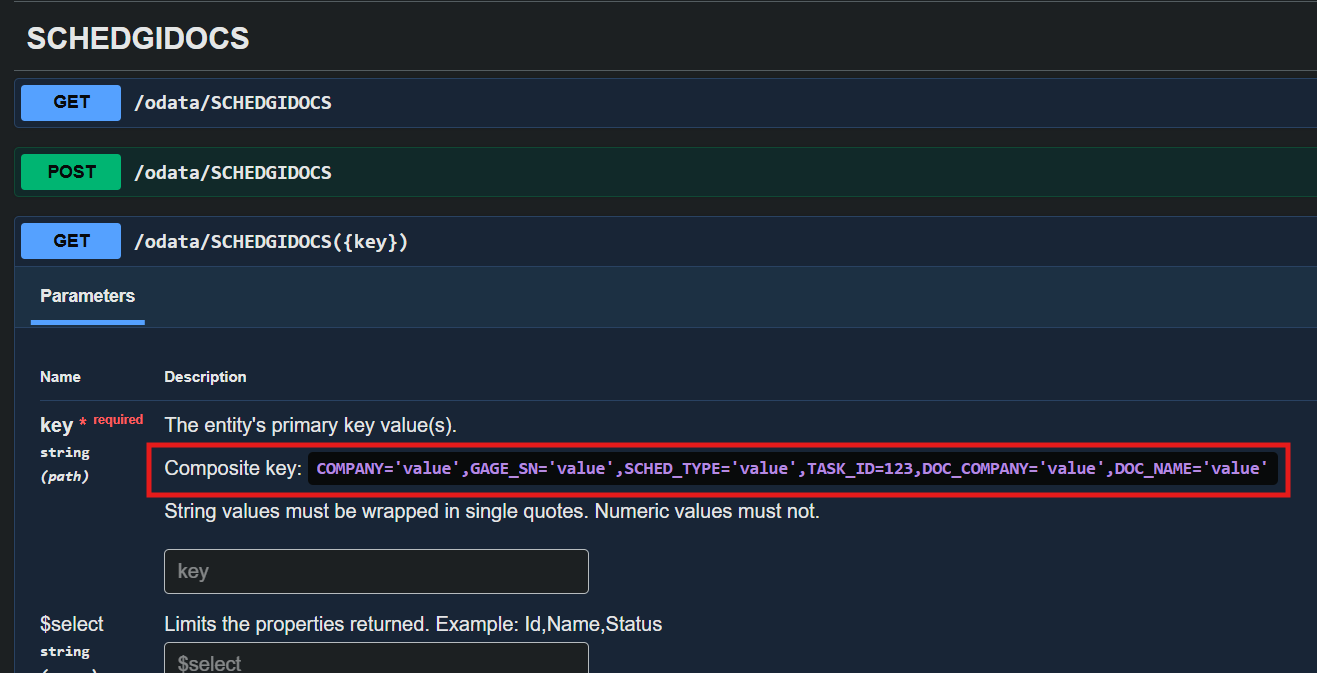

Primary Key identification — Each entity's schema displays its primary key fields (e.g., Primary Key: COMPANY, GAGE_SN), so you know exactly which fields are required for GET by key, PUT, PATCH, and DELETE operations.

Maximum field length — String fields display their maxLength constraint directly in the schema. Always check this before sending data to avoid truncation errors.

OData API with Swagger UI screenshot 4

Configuration & Limits

Setting	Value
Max results per page	100
Max $top value	100
Max $expand depth	3 levels
Max filter node count	100
Max any/all expression depth	2
Case-insensitive URIs	Yes

OData Metadata Levels

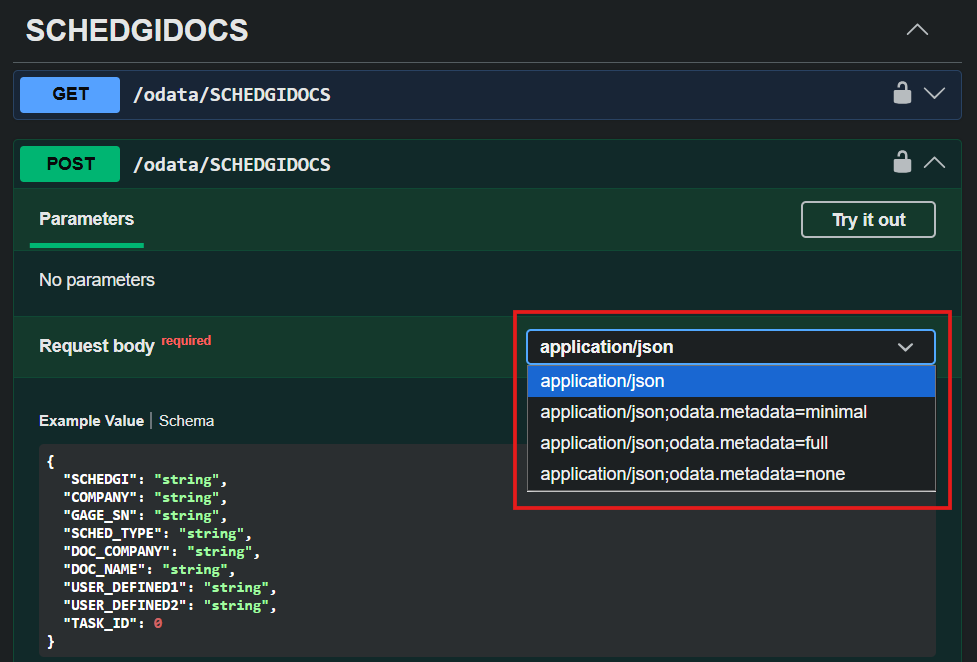

By default, OData responses include minimal metadata — only the essential data fields you requested. However, you can control how much metadata the API returns by setting the Accept header with different metadata levels.

Level	Accept Header Value	Description
Minimal (default)	application/json;odata.metadata=minimal	Returns only the data fields. No @odata.id, @odata.type, or @odata.editLink properties are included. This is the default behavior when no Accept header is specified.
Full	application/json;odata.metadata=full	Returns all OData metadata properties alongside the data, including @odata.id, @odata.type, and @odata.editLink for each record.
None	application/json;odata.metadata=none	Returns only raw data with no OData metadata at all — not even the @odata.context URL.

OData API with Swagger UI screenshot 5

When to Use Full Metadata

Use odata.metadata=full when you need:

@odata.id: The unique OData URI for each record (useful for referencing or linking records).

@odata.type: The fully qualified entity type name.

@odata.editLink: The URL to use for updating or deleting the record.

Note: Full metadata increases the response payload size. Use it only when you specifically need the @odata.id, @odata.type, or @odata.editLink properties. For general data queries, the default minimal metadata is recommended.

Key Format

When accessing a single entity by its primary key, use the following format in the URL:

Single key (integer):

/odata/ENTITY(42)

Single key (string) — must use single quotes:

/odata/ENTITY('ABC-123')

Composite key (multiple fields):

/odata/ENTITY(COMPANY='ABCDE',GAGE_SN='ABCDE')

Important: String values in keys must always be wrapped in single quotes (').

Date Filtering Best Practice

When filtering by date fields, always use the full ISO 8601 datetime format with the T separator and timezone designator:

Recommended (fast):

GET /odata/EVENTS?$filter=EVENT_DATE gt 2025-01-01T00:00:00Z

Avoid (may be slow on large tables):

GET /odata/EVENTS?$filter=EVENT_DATE gt 2025-01-01

The short date format (2025-01-01) is interpreted as a date-only value, which can prevent the database from using indexes efficiently on datetime columns — especially on large tables like EVENTS. The full datetime format (2025-01-01T00:00:00Z) ensures optimal query performance.

Note: The API includes an automatic conversion layer that handles most cases, but using the full datetime format is still the recommended best practice for consistent, fast results.

Query Examples (GET)

List all records

GET /odata/GAGES

Returns the first page (up to 100 records) of the GAGES entity.

Select specific fields with pagination

GET /odata/GAGES?$top=3&$skip=0&$select=COMPANY,GAGE_SN,GAGE_ID

Returns only the 3 specified fields for the first 3 records.

Get a single record by composite key

GET /odata/GAGES(COMPANY='ABCDE',GAGE_SN='ABCDE')?$select=COMPANY,GAGE_SN,GAGE_ID

Filter + order + count

GET /odata/GAGES?$filter=ISACTIVE eq '1'&$orderby=COMPANY,GAGE_SN&$count=true

Returns only active records, sorted by COMPANY then GAGE_SN, with the total count included in the response.

String filter operations

Contains:

GET /odata/GAGES?$filter=contains(GAGE_SN,'SN-100')

Starts with:

GET /odata/GAGES?$filter=startswith(MANUFACTURER,'Fluke')

GET /odata/GAGES?$filter=ISACTIVE eq '1'
    &$expand=SCHEDGI(
        $filter=SCHED_TYPE eq 'CALIBRATION'
            and SCHED_DUE_DATE ge 2026-01-01T00:00:00Z
            and SCHED_DUE_DATE le 2026-03-31T23:59:59Z;
        $select=SCHED_TYPE,SCHED_FREQ,SCHED_INTERVAL,SCHED_LAST,SCHED_DUE_DATE
    )
    &$select=COMPANY,GAGE_SN,GAGE_ID,MANUFACTURER,MODEL_NUM
    &$orderby=COMPANY,GAGE_SN

This query retrieves active equipment and expands their related schedules, filtering only calibration schedules due in Q1 2026.

Create, Update, and Delete

Create a new record (POST)

POST /odata/GAGES
Content-Type: application/json

{
  "COMPANY": "ACME",
  "GAGE_SN": "SN-NEW-001",
  "GAGE_ID": "New Equipment",
  "MANUFACTURER": "Fluke",
  "MODEL_NUM": "Model-X"
}

Response	Meaning
201 Created	Record created successfully
409 Conflict	A record with the same key already exists

Full update — PUT (upsert)

Replaces all fields of an existing record. If the record does not exist, it creates it.

PUT /odata/GAGES(COMPANY='ACME',GAGE_SN='SN-NEW-001')
Content-Type: application/json

{
  "COMPANY": "ACME",
  "GAGE_SN": "SN-NEW-001",
  "GAGE_ID": "Updated Equipment Name",
  "MANUFACTURER": "Fluke",
  "MODEL_NUM": "Model-Y"
}

Response	Meaning
204 No Content	Record updated successfully
201 Created	Record did not exist and was created

Partial update — PATCH

Updates only the specified fields, leaving all other fields unchanged.

PATCH /odata/GAGES(COMPANY='ACME',GAGE_SN='SN-NEW-001')
Content-Type: application/json

{
  "MANUFACTURER": "Keysight"
}

Response	Meaning
204 No Content	Record updated successfully
404 Not Found	Record with the specified key does not exist

Delete a record (DELETE)

DELETE /odata/GAGES(COMPANY='ACME',GAGE_SN='SN-NEW-001')

Response	Meaning
204 No Content	Record deleted successfully
404 Not Found	Record with the specified key does not exist

Note: Create, Update, and Delete operations require a Writer role API Key. If you have a Reader key, these operations will return 403 Forbidden.
