Clone PIPETTE CAL event
The IndySoft Pipette Module includes a base PIPETTE CAL event. If this is your initial setup, your first step should be to clone the PIPETTE CAL event. The clone becomes your actual production event, ready for you to customize with selection rules, completion rules, security settings, and so on.
If you're upgrading an existing Pipette Module, the upgrade will completely overwrite the event called PIPETTE CAL. For this reason, IndySoft advises against using PIPETTE CAL as a production-level custom event. Treat it as a placeholder for new pipette-event upgrades; your custom-named clone is the production event that won't be wiped out by upgrades.
After an upgrade, you can review the differences between the official event and your customized event as needed.
Cloning the event

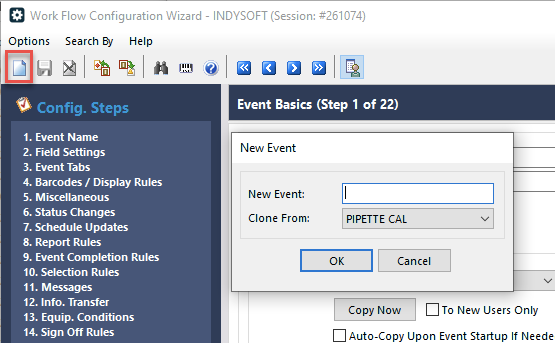

Open Workflow Configuration, click New Event Configuration in the upper-left, and make sure you're cloning from PIPETTE CAL.
New Event Configuration — clone from PIPETTE CAL

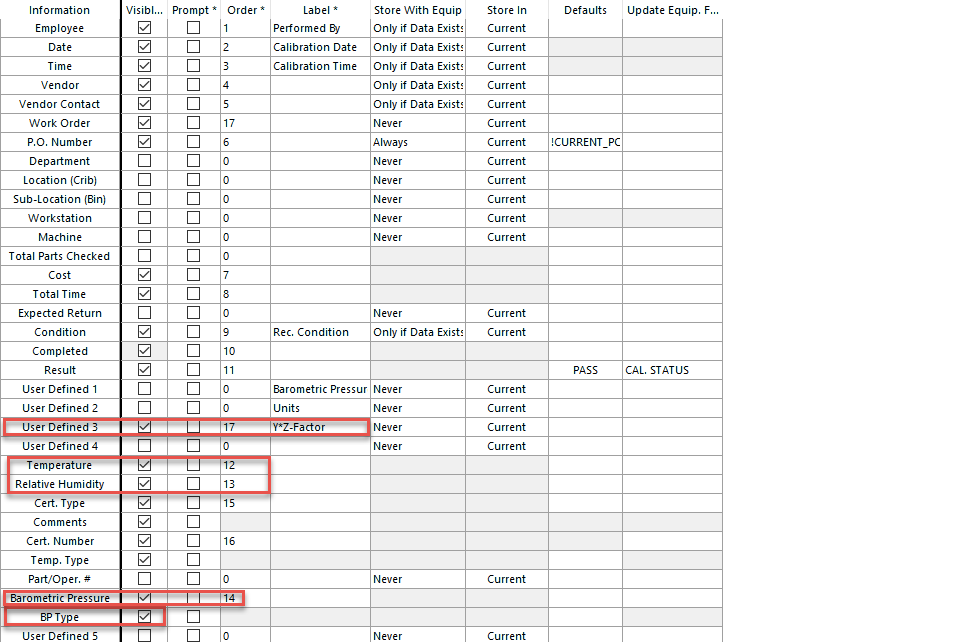

Step 2 — items that must not be changed
On step 2, several items must never be changed — they're used by the COLLECT PIPETTE DATA event project script.
Step 2 — items that must not be changed
The Y * Z-Factor was referred to as the Z-Factor in 12.1 and earlier versions. The renaming makes the term more technically correct with ISO 8655. The Y-factor is logged independently with individual test points, for reporting purposes.
