Test Points

IndySoft's Test Points tab is quick and easy to use. Enter established test point data, or use IndySoft's test-point-results data. If your test point data is in an Excel spreadsheet, you can select the document and use it during the calibration event as the test results. There are several ways to use test point data — this page covers setting up a basic test point result screen.

The Test Point toolbar

Test Point toolbar

The Test Point tab toolbar contains, from left to right:

• Toggle Default Tolerance Info
• Tolerance Calculator
• Add New Test Point Tab
• Calibration Setup Wizards
• Cut/Copy Multiple Rows
• Paste Multiple Rows
• Test Point Duplicator
• Edit Multiple Rows
• Test Point Type

For more on these icons, see the IndySoft Client manual.

Entering test points manually

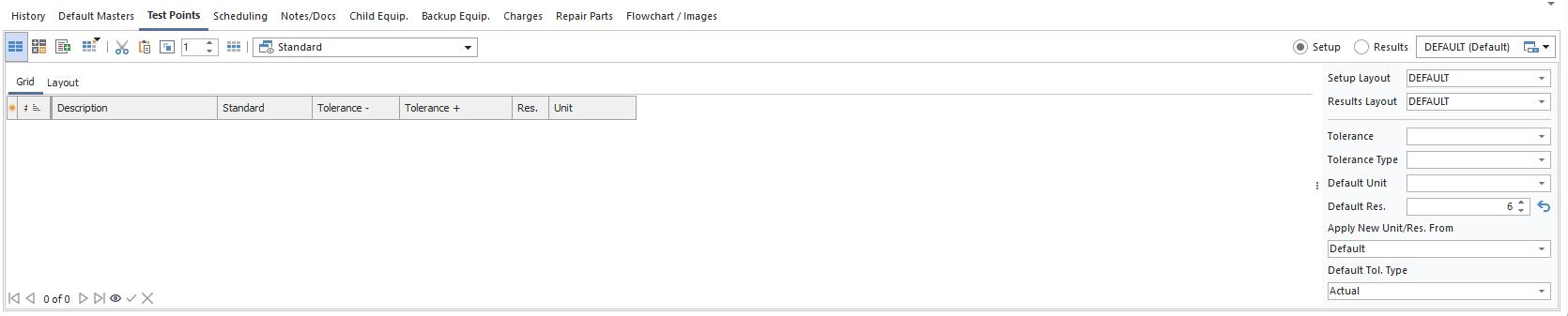

Test Points tab

tip

You can also set up test points by typing the information per line and column.

To enter test points manually, click the Toggle Default Tolerance icon on the far left of the test point toolbar. The tolerance dialog box opens.

note

To add additional tolerance types, you'll need access to the system-wide settings under the Tolerance Formulas tab. More information is available in the system preferences guide.

Now set up the data:

Tolerance dialog

1. Set Tolerance Type to Asymmetrical. This lets you enter a plus and minus tolerance value for each test point.
2. Set the tolerance to 0.25 for each type.
3. Set Default Unit of Measure to Millimeters (mm).
4. Set Default Resolution to 3 — the number of digits to the right of the decimal point.
5. Save the test point information.

Tolerance set

Enter the following information into the test point grid:

• Description — Test 1
• Standard — 25 (then arrow down)
• Standard — 30 (then arrow down)
• Standard — 35 (then arrow down)
• Standard — 40 (then arrow down)
• Standard — 45 (then arrow down)
• Standard — 50 (then arrow down)

note

These values do not reflect real test point data. They're examples to demonstrate how plus and minus tolerances work when values are placed in the Standard field.

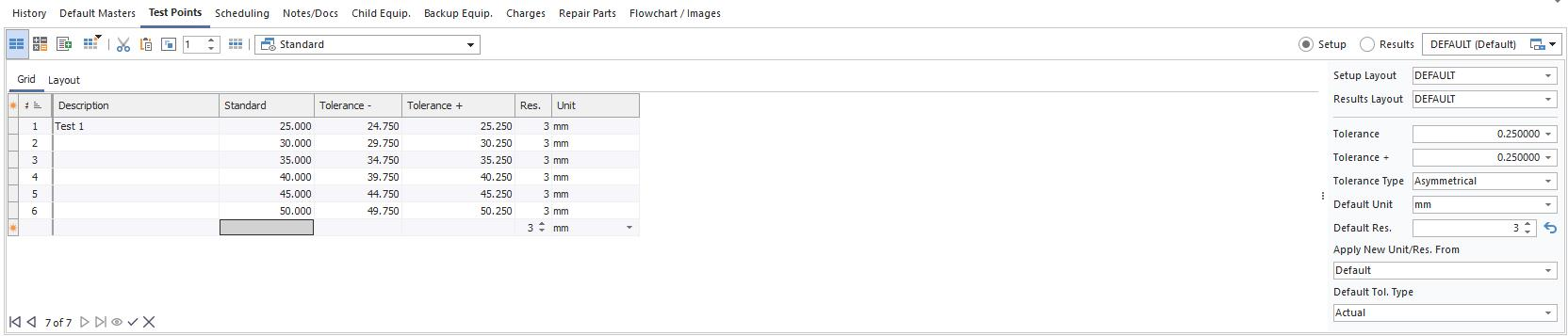

Test point grid populated

These test points are now available for use during the Calibration event. Uncertainties and other additional functions can also be configured.
